CASE STUDY

From Precision Gear Machining to Full-Assembly Validation for Demanding Agricultural Machinery Applications

From precision gear machining to full-assembly validation for demanding agricultural machinery applications.

Project Overview

Industry Agricultural Machinery & Equipment / Australia	Manufacturing Scope Custom Gear Machining, Multi-Stage Assembly, DFM Optimization, Quality Metrology
Key Challenge High gear mesh precision, clamping deformation control, and tight multi-part assembly tolerances.	Result & Delivery Controlled multi-stage speed reduction and 100% full-assembly validation before export.

For agricultural machinery operating in demanding outdoor environments, a reduction gearbox must deliver reliable power transmission, controlled speed reduction, and consistent mechanical performance.

For this Australian agricultural equipment manufacturer, the requirement went beyond producing individual machined components. The project called for a custom multi-stage reduction gearbox designed around the customer’s specific engineering requirements.

STARWAY’s engineering and production teams supported the project from DFM analysis through precision gear machining, multi-component assembly, and full-assembly validation before export.

Contents

The Challenge: Turning Complex Custom Drawings into a Heavy-Duty Gearbox
STARWAY’s Engineering & Manufacturing Solution
Key Product Features & Manufacturing Results
From Custom Drawings to Complete Mechanical Assemblies
Looking for a Custom Gearbox Manufacturing Partner?

The Challenge: Turning Complex Custom Drawings into a Heavy-Duty Gearbox

When our Australian client approached STARWAY with their custom engineering drawings, they needed more than standard part fabrication. The project required a robust multi-stage reduction gearbox capable of supporting demanding agricultural machinery applications.

Diverse & High-Precision Gear Geometries

The gearbox incorporated multiple gear profiles, including precision spur gears and worm gears. Consistent gear geometry was essential to support stable meshing and minimize excessive noise, vibration, and premature wear.

Multi-Component Assembly & Tolerance Stacking

The assembly involved shafts, bearings, gears, and other tightly mated components. Dimensional variations could accumulate across multiple components and affect backlash, interference fits, alignment, and torque transmission. Coordinated control of individual components and final assembly was therefore essential.

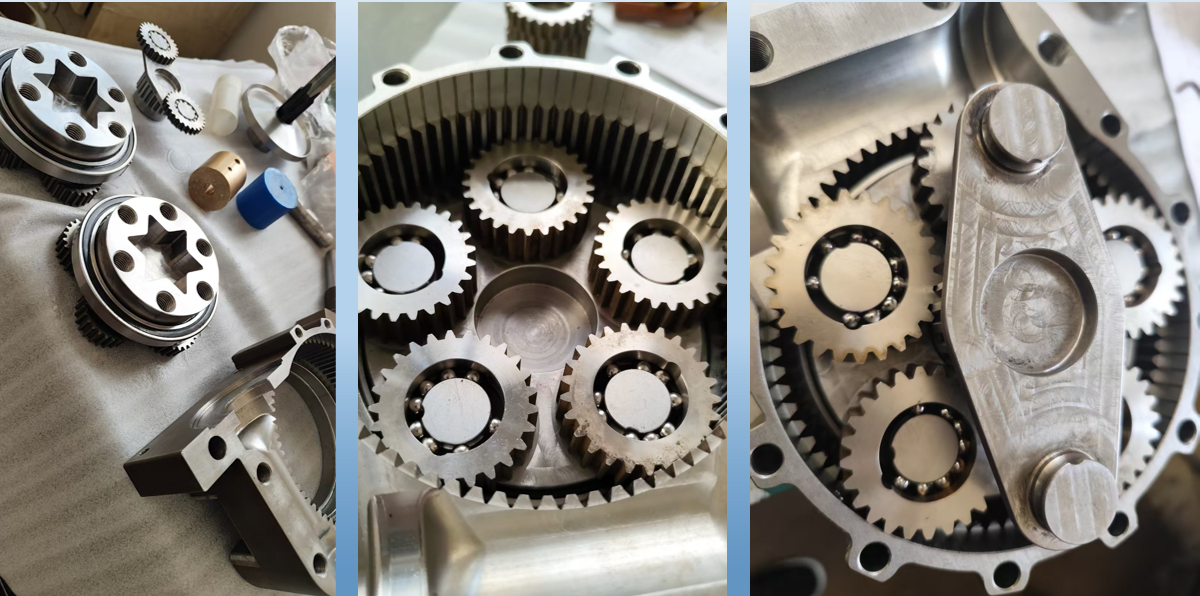

Custom multi-stage reduction gearbox manufactured for agricultural machinery applications.

STARWAY’s Engineering & Manufacturing Solution

STARWAY applied a closed-loop manufacturing approach combining DFM analysis, precision gear machining, fixture design, process control, assembly standardization, operator training, and final validation.

Precision Gear Hobbing & Deformation Control

Two-Stage Machining:
Rough hobbing followed by high-precision finish hobbing to progressively achieve the required gear geometry and help manage internal machining stresses.
Custom Tooling & Clamping Strategy:
Customized fixtures and clamping methods were used to reduce clamping deformation where gear blanks required careful support.
Thermal & Coolant Optimization:
Cutting speeds, feed rates, and high-pressure flood cooling were adjusted to control temperature and maintain dimensional consistency across spur and worm gear sets.

Precision gear machining and controlled manufacturing processes for the gearbox.

Multi-Stage Assembly & Standardized SOPs

Tolerance Stacking Management:
DFM analysis focused on mating dimensions to support appropriate backlash and interference-fit requirements.
Dedicated Assembly SOP:
Step-by-step assembly procedures and specialized assembly jigs supported repeatable gear alignment and controlled torque application.
Operator Training:
Task-specific training was provided to assembly technicians before pilot production runs.

Key Product Features & Manufacturing Results

Area	Manufacturing Result
Controlled Multi-Stage Speed Reduction	Staged speed reduction was designed to deliver controlled deceleration and help manage shock loads during abrupt operating changes.
Optimized Gear Meshing	Gear tooth contact and backlash were carefully considered to support smooth power transmission, controlled vibration, and stable operation.
Fully Assembled Delivery	The complete gearbox assembly was delivered ready for integration, reducing customer assembly work and simplifying supply chain coordination.
100% Full-Assembly Validation	Each completed assembly underwent full validation before export to support consistent product quality and assembly performance.

From Custom Drawings to Complete Mechanical Assemblies

This project demonstrates that complex mechanical products require more than individual machining capabilities. Successful production depends on coordination across engineering analysis, DFM optimization, precision machining, fixture design, assembly processes, operator training, and final inspection.

STARWAY’s goal was not simply to manufacture individual gears, but to deliver a complete assembled mechanical product ready for integration into agricultural machinery.
